3 Ton Hydraulic Digger Mini Excavator 360 Degree Rotation Crawler Excavator
Characteristics:
1. The overall shape of the 3-ton mini excavator can be optionally configured with a cab or a roof.
2. The 3-ton mini excavators are equipped with the Laidong 385 engine and meet the Euro V emission standards.
3. The 3-ton mini excavator has a large-capacity bucket, with the bucket capacity of the excavator reaching up to 0.036 m3.
4. The 3-ton mini excavator has been upgraded with an enlarged and thickened bulldozer blade to enhance the stability of the excavator's operation.
Application:
1. The 3-ton mini excavator is mainly used for agricultural planting and garden renovation.
2. The 3-ton mini excavators are mainly used in municipal construction and earthwork projects.
3. The 3-ton mini excavator is mainly used in the construction of golf courses, etc.
Advantage:
1. The 3 ton mini excavator is multi-functional and can be equipped with various attachments, such as flat buckets, hydraulic thumb clamps, rakes, etc.
2. The 3 ton mini excavators have the advantages of high efficiency, energy conservation, environmental protection performance and comfortable operation.
Specification:
| Transportation length | 4365 mm | Max Digging height | 3397 mm |
| Total width | 1338 mm | Max Unloading height | 2200 mm |
| Upper width | 1354 mm | Max Digging depth | 2620 mm |
| Overall height | 2364 mm | Min turning radius | 2097 mm |
| Standard track plate width | 230 mm | Max Digging distance | 2285 mm |
| Track gauge | 1090 mm | Working quality | 3000 kg |
| Track ground length | 1570 mm | Bucket capacity | 0.036 m3 |
| Track length | 1926 mm | Gradeability | 30 ° |
| Fuel tank | 38 L | Rated power | 19KW/2250 RPM |
| Cooling system | 5.05 L | Rotational speed | 10 rpm |
| Hydraulic oil tank | 40 L | | |
Packing :
Under normal circumstances, we would put the machine into the pre-packed wooden box and then place the wooden box into the container.

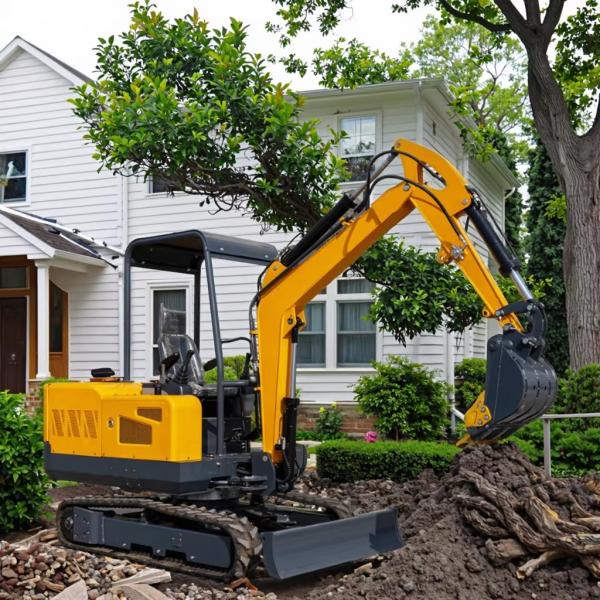

Picture Show:
