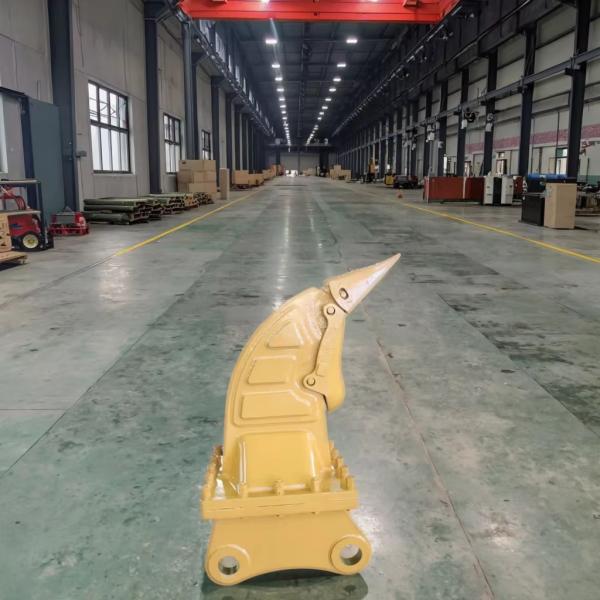

Excavator Ripper With Shaft For Broken Frozen Soil And Hard Soil
Characteristics:
1. Main material selection: The steel plate is made of high-strength and corrosion-resistant Q355 manganese steel plate. The pin shaft is made of high-strength and high-toughness 42CrMo alloy steel.
2. Design of vulnerable parts: The bucket teeth/guard plates adopt standard models to ensure convenient procurement. The bucket teeth are fixed with a pin design, which is convenient for quick disassembly, assembly and replacement.
3. Main protective structure: Special-shaped protective plates are welded on both sides of the main board to enhance protection. For models with a capacity of 20 tons and above, double-layer reinforcing plates are additionally welded, significantly enhancing the impact resistance and durability of the mainboard.
Application:
1. Loose operations on relatively hard soil layers, permafrost layers, soft rocks, weathered rocks and other geological conditions.
2. Excavated cracked rocks, broken asphalt pavements, etc.
Advantages:
1. Customized connection interface: We support customizing split or flat special shelves (connection racks) according to customer requirements.
2. Customized bucket teeth for tunnel conditions: We can provide single-tooth or double-tooth bucket teeth solutions specifically designed for narrow Spaces such as tunnels.
Packing:
Under normal circumstances, we will first fix the products, then load them into packed wooden cases and finally transport them in containers
Main parameters:
| Production Name | Excavator Ripper With Shaft For Broken Frozen Soil And Hard Soil |
| Brand | All the famous excavators |
| Type | Excavator Ripper With Shaft |
| Colour | Yellow, Black |
| MOQ | 1 |
| Payment | T/T |
| Application | Broken Frozen Soil And Hard Soil |
Type Weight
| Suitble Excavator | Weight |
| 4 Ton - 6 Ton | 80 kg |
| 7 Ton - 9 Ton | 150 kg |
| 12 Ton - 18 Ton | 300 kg |
| 19 Ton - 24 Ton | 450 kg |
| 25 Ton - 30 Ton | 600 kg |
| 30 Ton - 38 Ton | 850 kg |
| 35 Ton - 45 Ton | 1000 kg |
| 40 Ton - 50 Ton | 1400 kg |
| 45 Ton - 60 Ton | 2000 kg |
Picture Show:
